Watch Band Pin 1.80mm Nickel Plated Hollow End Female Spring Bars

SKU:
Watch Band Pin 1.80mm Nickel Plated Hollow End Female Spring Bars
$1.25
  • Buy 10 - 49 and get 5% off
  • Buy 50 - 99 and get 10% off
  • Buy 100 or above and get 15% off
Current Stock:

These are special spring bars that have a hollow end to fit over the permanent nubs on the case lugs instead of fitting into the holes on the end of the case lugs. These spring bars must close enough to get over the nubs and reopen when they are over the nubs to fit them onto the watch. These are commonly called female spring bars. The thickness of these spring bars is 1.8mm and they are nickel plated. Each of these spring bars is sold individually, allowing you to decide the size of the replacement spring bar you need to fit your watch. Simply select the size you need from the drop down menu.

  • Sold individually
  • Nickel plated spring bars
  • Female hollow ends
  • 1.8mm thickness
  • Available in 6mm (1/4"), 8mm (5/16"), 9mm (11/32"), 10mm (3/8"), 11mm (7/16"), 12mm (15/32"), 16mm (5/8"), 18mm (11/16"), 19mm (3/4") and 24mm (25/32")

*Sizes are approximate as measurements may vary slightly by gauge.

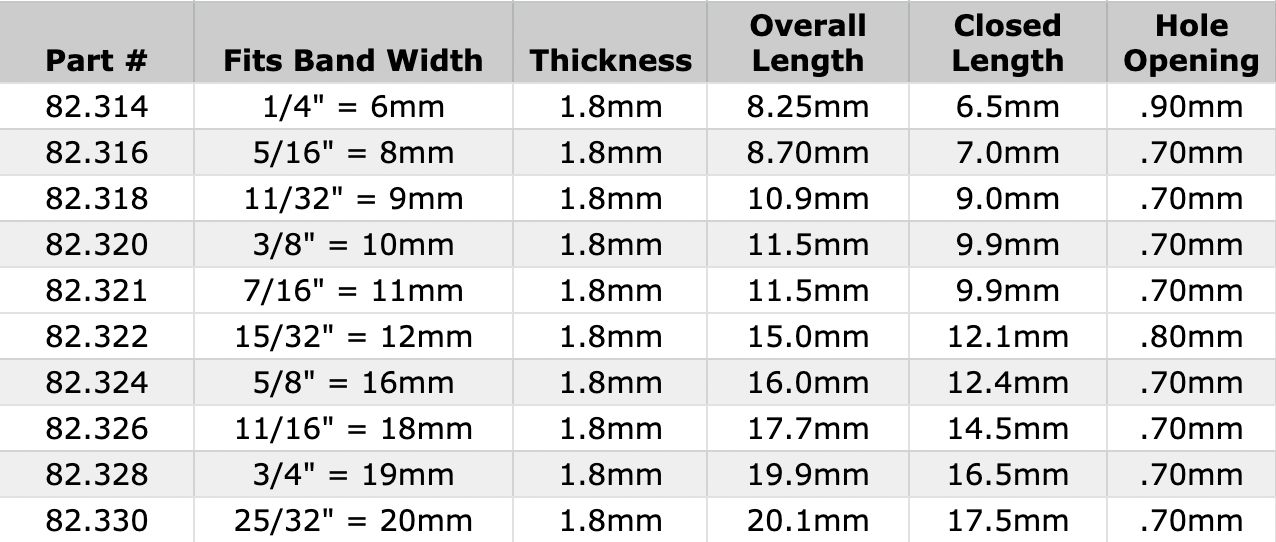

Part # Fits Band Width Thickness Overall Length Closed Length
82.314 1/4" = 6mm 1.8mm 8.25mm 6.5mm
82.316 5/16" = 8mm 1.8mm 8.70mm 7.0mm
82.318 11/32" = 9mm 1.8mm 10.9mm 9.0mm
82.320 3/8" = 10mm 1.8mm 11.5mm 9.9mm
82.321 7/16" = 11mm 1.8mm
82.322 15/32" = 12mm 1.8mm 15.0mm 12.1mm
82.324 5/8" = 16mm 1.8mm 16.0mm 12.4mm
82.326 11/16" = 18mm 1.8mm 18.0mm 14.5mm
82.328 3/4" = 19mm 1.8mm 19.9mm 16.5mm
82.330 25/32" = 24mm 1.8mm 20.1mm 17.5mm
