Individual Five Sided Cutting Broaches .013 to .227 Inches Stub 15 to 80

Starting At $2.79
Have a question?

Product Description

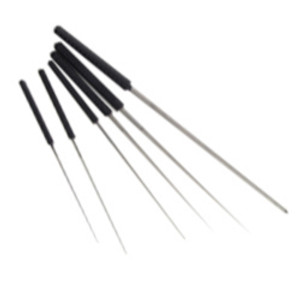

Cutting, Cleaning and finishing broaches made of high quality steel and uniformly tempered for long life. Broaches will help jewelers or watchmakers increase the size of precision holes in metal material. These are made from hardened steel for strong cutting and long lasting use.

  • Lengths vary from 1 3/4" to 7" inches
  • Diameter is gauged slightly below largest portion of the cutting edges
  • Sold per piece
    Stub Number Total Length (MM) Useful Length (MM) Max Cut Width (Inch) Max Cut Width (MM) Minimum Cut Width (MM)   Stub Number Total Length (MM) Useful Length (MM) Max Cut Width (Inch) Max Cut Width (MM) Minimum Cut Width (MM)   Stub Number Total Length (MM) Useful Length (MM) Max Cut Width (Inch) Max Cut Width (MM) Minimum Cut Width (MM)

    01

    162 107 .227" 5.75 4.80   40 125 82 .097 2.50 1.80   62 77.5 48 .038" 0.95 0.54
    02 160 105   5.50 4.50   41 122 80   2.40 1.75   64 75 47   0.90 0.50
    04 158 104   5.25 4.30   42 119 78   2.30 1.70   65 72.5 46 .033" 0.85 0.48
    08 156 103   5.00 4.10   44 116 76   2.20 1.60   66 70.5 44   0.80 0.45
    12 154 102   4.75 3.80   45 113 74 .081" 2.10 1.50   68 68 42 .031" 0.75 0.41
    16 151 100   4.50 3.60   46 110 72   2.00 1.40   70 66 41 .027" 0.70 0.37
    18 149 99   4.25 3.40   48 107 70 .075" 1.90 1.30   71 64 40   0.65 0.34
    22 147 98   4.00

    3.10

      49 104 68   1.80 1.20   72 62 38 .024" 0.60 0.30
    26 145 97   3.75 2.70   51 101 65 .067" 1.70

    1.15

      74 60 37   0.55 0.28
    28 142 96   3.50 2.60   52 98 63 .063" 1.60 1.10   75 58 36 .020" 0.50 0.25
    30 140 95 .127" 3.25 2.40   53 95 61   1.50 1.00   76 56 34   0.45 0.20
    31 138 93   3.00 2.20   54 92 59

    .055"

    1.40 0.90   78 54 33   0.40 0.15
    32 135 91   2.90 2.10   55 89 57 .050" 1.30 0.80   79 52 32   0.35 0.13
    35 132 89 .108" 2.80 2.05   56 86 54   1.20 0.70   80 50 31 .013" 0.30 0.10
    36 129 87   2.70 2.00   58 83 52 .042" 1.10 0.63
    38 127 85   2.60 1.90   60 80 50 .039" 1.00 0.57
