Generic Made To Fit Rolex® Watch Band Spring Bar Pin

Generic Made To Fit Rolex® Watch Band Spring Bar Pin
$2.50 - $2.95
Current Stock:

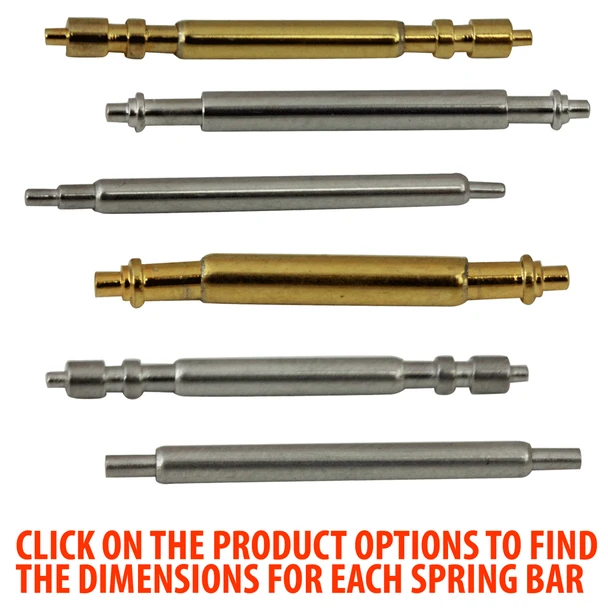

These are generic made to fit Rolex® spring bars. Each size spring bar is sold individually, allowing you to decide the Rolex spring bar you need. Simply select the Rolex part number you need from the drop down menu above.

  • Sold individually
  • Generic made to fit Rolex® spring bars
  • Available in 1.5mm, 1.8mm and 2.0mm thickness
  • Rolex springs bars available: 9260, 9270, 9280, 9281, 9290, 9291, 9361, 9363, 9381, 9382, 40208, 40200, 40190, 40170, and 40138

*Sizes are approximate as measurements may vary slightly by gauge.

Part Number Fits Lug Width Overall Length Body Length Bar Thickness Tip Diameter
82.9260 13.0mm 16.4mm 12.9mm 1.8mm .90mm
82.9270 16.5mm 22.7mm 16.5mm 1.8mm .85mm
82.9280 18.5mm 25.3mm 18.5mm 1.8mm .90mm
82.9281 19.0mm 24.9mm 18.6mm 1.8mm .90mm
82.9290 19.5mm 25.0mm 19.5mm 1.8mm .90mm
82.9291 20.0mm 25.2mm 19.8mm 2.0mm 1.2mm
82.9361 12.5mm 15.5mm 9.6mm 1.5mm .70mm
82.9363 13.0mm 15.2mm 9.3mm 1.8mm .90mm
82.9381 19.5mm 24.1mm 15.6mm 1.8mm .90mm
82.9382 20.0mm 22.8mm 10.5mm 1.8mm .90mm
82.9413 13.0mm 16.8mm 9.6mm 1.8mm .90mm
82.9417 17.0mm 21.6mm 13.4mm 1.8mm .90mm
82.9419 19.0mm 22.2mm 15.3mm 1.8mm .80mm
82.9420 20.0mm 23.2mm 16.3mm 1.8mm .80mm
82.9428 19.5mm 22.5mm 10.4mm 1.8mm .80mm

 ***Esslinger & Co. is independent of and not affiliated with or sponsored by Rolex® Watch U.S.A. Inc. Rolex® warranty does not apply to non-genuine parts supplied by Esslinger & Co***


Click Here for Our Generic Rolex Spring Bar Chart
