Hattori Japan Chronograph Quartz Watch Movement YM92 Overall Height 5.9mm
$32.95
Watch movements are arguably the most important part of a watch: as the heart and brains of our timekeeping devices, you need to have a movement if you want your watch to work. Quartz watch movements are the new style of movement, they are built to last and come ready to install. These Hattori Japanese movements are Japanese assembled and are made to fit Seiko, Lorus, and Pulsar watch cases.

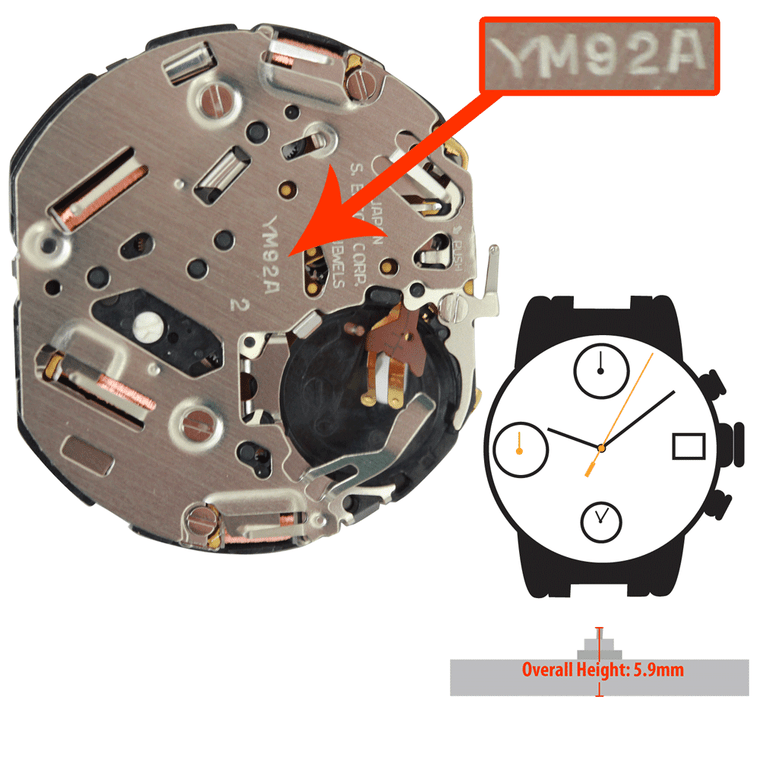

**Note** Click on the image above to see more images of the movement. In these images we have conveniently marked where the dial feet are and where the movement number is.
- Sold individually
- Outside Diameter: 10 1/2 x 12 Ligne or 24.1 x 27.6mm
- Movement 3.70 mm thick
- Overall height from the bottom of the movement to the top of the hand pinion 5.90mm
- Has a date display at 3:00
- Dial is white
- Requires watch cell 395
- Requires watch hands: hour 1.10, minute .65, and sec chronograph wheel .21mm
- 12 Hrs at 6:00, hole size .21 and .90mm
- Small sec at 9:00, hole size .21mm
- 1/20 sec at 12:00, hole size .21mm
- Has NO jewels
- Stem: 351584, Tap 10
- Replacement movement for Seiko 7T92
- Includes watch stem
- Hattori Japan quartz movement
- Japanese assembled
Watch Movement Return Policy
Watch movements should be checked immediately upon receiving your shipment. Every watch movement is tested and running at factory specifications at the time of manufacturing with No Express Warranty and Non-Returnable. Within 7 days of receipt if the movement does not meet your satisfaction contact us with any questions. Movements showing signs of work or damage, lint or fingerprints, missing parts, or without genuine packaging will not be considered for return.
