Hattori Japan Quartz Chronograph Watch Movement VD84 Overall Height 5.0mm

SKU:
VD84
Availability:
Non-Returnable Product
$24.95
Current Stock:

Watch movements are arguably the most important part of a watch: as the heart and brains of our timekeeping devices, you need to have a movement if you want your watch to work. Quartz watch movements are the new style of movement, they are built to last and come ready to install. These Hattori Japanese movements are Japanese assembled and are made to fit Seiko, Lorus, and Pulsar watch cases.

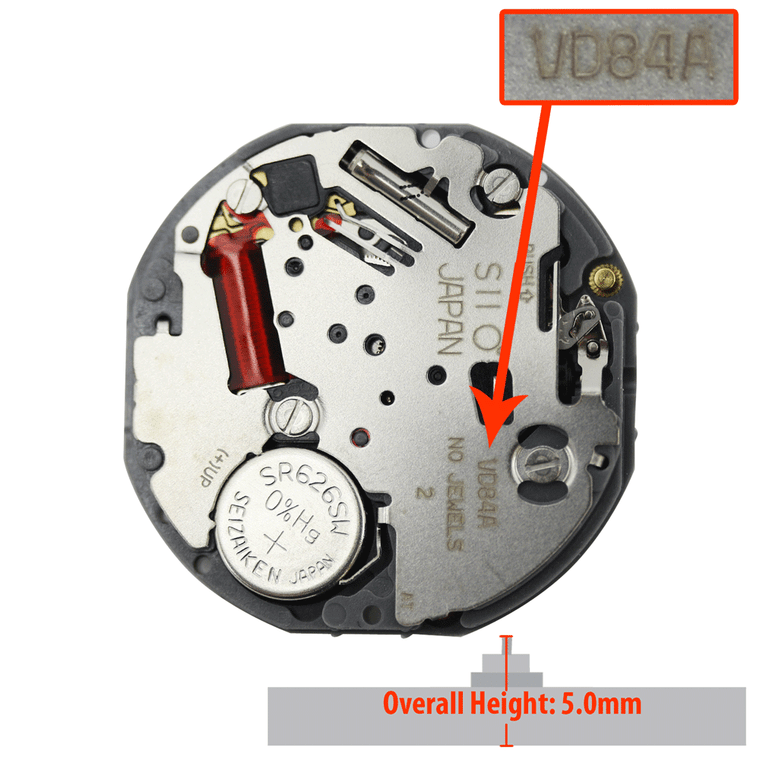

**Note** Click on the image above to see more images of the movement. In these images we have conveniently marked where the dial feet are and where the movement number is.

  • Sold individually
  • Outside Diameter: 10 1/2 Ligne or 23.7mm
  • Movement 3.45mm thick
  • The height from the bottom of the watch movement to the top of the minute pinion is 5.0mm
  • Date calendar hand at 3:00
  • Small second hand at 6:00
  • Day calendar hand retrograde at 9:00
  • 24 hour hand at 12:00
  • Requires watch cell 377
  • Requires watch hands: hour 1.20, minute .70, and small seconds .20mm
  • Has NO jewels
  • Supplied with stem: 351177, Tap 10
  • The following stem is available but must be ordered separately: 351892 - Tap 11
  • Includes watch stem
  • Hattori Japan quartz movement
  • Movement marked VD84A
  • Japanese assembled



Watch Movement Return Policy

Watch movements should be checked immediately upon receiving your shipment. Every watch movement is tested and running at factory specifications at the time of manufacturing with No Express Warranty and Non-Returnable. Within 7 days of receipt if the movement does not meet your satisfaction contact us with any questions. Movements showing signs of work or damage, lint or fingerprints, missing parts, or without genuine packaging will not be considered for return.



Click Here for our How to Replace a Watch Movement Guide
