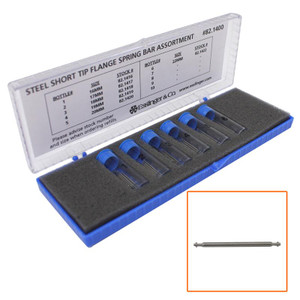

Steel Short Tip Single Flange Spring Bars 1.0MM Thick Package Of 10

SKU:
Steel Short Tip Single Flange Spring Bars 1.0MM Thick Package Of 10
$3.25
  • Buy 10 - 49 and get 5% off
  • Buy 50 - 99 and get 10% off
  • Buy 100 or above and get 15% off
Current Stock:

These spring bars are great for anyone trying to repair a watch band clasp. Ultra thin 1.0mm thick to fit most high grade ultra thin watch band clasps and made of steel for durability. Single flanged and short ends keep the spring bar from sticking out the sides of the clasp. Available in 6 different sizes to fit most any watch band clasp.

  • Available in 10.0mm, 16.0mm, 17.0mm, 18.0mm 19.0mm, 20.0mm and 22.0mm lengths
  • Single flanged short end for clasps
  • Stainless steel
  • 1mm bar thickness
  • Sold in packages of 10 pieces
  • Please note: Spring bar sizes are the compressed length of the spring bar or the width between the band lugs

* Sizes are approximate as measurements may vary slightly by gauge

Part Number Fits Lug Width Compressed Length Bar Length Overall Length Tip Diameter
82.1410 10.0mm 9.9mm 7.5mm 12.0mm .70mm
82.1416 16.0mm 15.8mm 14.4mm 16.7mm .60mm
82.1417 17.0mm 16.6mm 15.4mm 18.7mm .60mm
82.1418 18.0mm 17.8mm 16.4mm 19.7mm .60mm
82.1419 19.0mm 18.8mm 17.4mm 20.7mm .60mm
82.1420 20.0mm 19.8mm 18.4mm 21.7mm .60mm
82.1422 22.0mm 21.8mm 20.4mm 23.7mm .60mm
