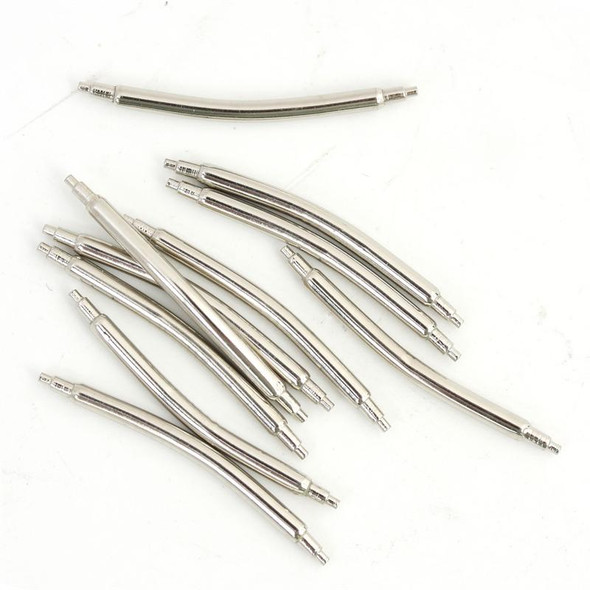

These are the 1.80 mm Double Shoulder nickel plated spring bars. Each size spring bar is sold in a set of 10, allowing you to decide the size of the replacement spring bar you need. Select the size you need from the drop down menu above.
- Come in packages of 10
- Nickel plated spring bars
- Double shoulder
- 1.80 mm thick diameter
- Come in 10 different lengths: 6 mm, 8 mm, 10 mm, 11 mm, 13 mm, 14 mm, 16 mm, 18 mm, 19 mm, 21mm, 22 mm, 24 mm, 26 mm, and 30 mm
Part Number |
Fits Lug Width |
Compressed Length |
Overall Length |
Body Length |
Tip Diameter |
82.360 |
6mm / 1/4" |
8.2mm |
9.5mm |
6.1mm |
.70mm |
82.362 |
8mm / 5/16" |
7.6mm |
10.7mm |
6.9mm |
.80mm |
82.364 |
10mm / 3/8" |
9.0mm |
11.6mm |
9.0mm |
.80mm |
82.366 |
11mm / 7/16" |
10.0mm |
13.2mm |
9.5mm |
.80mm |
82.370 - Steel |
14mm / 9/16" |
15.0mm |
18.5mm |
13.3mm |
.80mm |
82.372 - Steel |
16mm / 5/8" |
15.4mm |
19.5mm |
14.4mm |
.80mm |
82.374 |
18mm / 11/16" |
16.2mm |
20.8mm |
15.2mm |
.80mm |
