Generic Rolex® Watch Bezel Gasket Inserting Die Sets (Generic Rolex® Watch Bezel Gasket Inserting Die Sets)

Generic Rolex® Watch Bezel Gasket Inserting Die Sets

SKU:
Generic Rolex® Watch Bezel Gasket Inserting Die Sets
$149.95
Current Stock:
Description

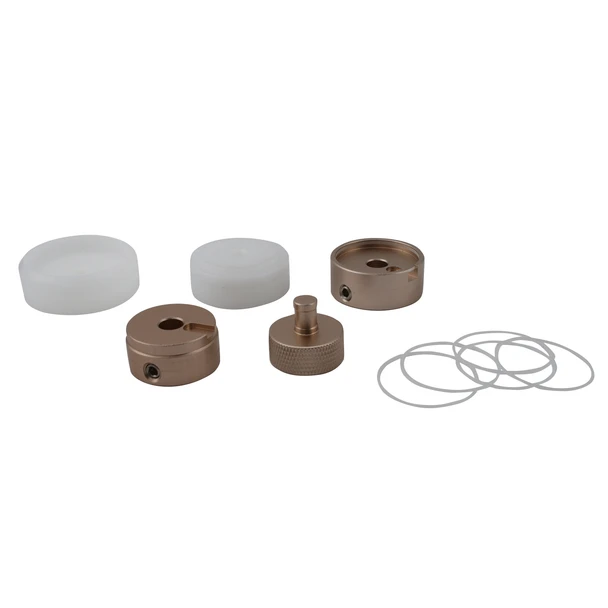

These dies are for installing the bezel gaskets on the new models of Rolex® brand watches. These are the new models that have an inner bezel ring and gasket. This gasket is needed to hold the bezel onto the case. Each set of dies is specific to the case numbers on the watch. Fits the Horotec®, Bergeon® and other threaded post presses. Bezel gaskets sold separately.

  • Comes with 4 dies and a die fitting piece
  • Nylon and aluminum dies
  • Cut out sections for the window or lens on the dies
  • Large nylon die is tapered on top
  • Comes with 5 bezel gaskets
  • Handy storage case
  • Bezel gaskets sold separately
  • Fits Horotec®, Bergeon® and other threaded post presses
  • Uses a 3mm hex screw

***Esslinger & Co. is independent of and not affiliated with or sponsored by Rolex® Watch U.S.A. Inc. Rolex® warranty does not apply to non-genuine parts supplied by Esslinger & Co***

Part Number Fits Case Numbers Die W/Post   Small Aluminum Die   Large Aluminum Die Small Nylon Die
Large Nylon Die
    Die Diameter / Thickness Post Diameter / Length Outside Diameter / Thickness Step Diameter / Thickness Outside Diameter / Thickness Outside Diameter / Thickness Step Diameter / Thickness Outside Diameter / Thickness
59.747 11610, 11610-1 25.2mm / 10.8mm 7.3mm / 10.8mm 30.4mm / 11.0mm 29.2mm / 4.0mm 36.0mm / 15.2mm 38.5mm / 13.5mm 30.4mm / 1.5mm 44.4mm / 15.0mm
59.743 116221, 116228, 116610, 116710, 116713 25.2mm / 10.8mm 7.3mm / 10.8mm 30.4mm / 11.1mm 29.2mm / 4.0mm 36.0mm / 15.0mm 38.5mm / 13.4mm 30.4mm / 1.4mm 44.4mm / 15.0mm
59.744 114200, 115200, 115210, 116261, 116263, 116264 25.2mm / 10.8mm 7.3mm / 10.8mm 29.5mm / 11.0mm 28.3mm / 4.1mm 35.1mm / 15.0mm 33.0mm / 13.5mm 29.7mm / 1.4mm 40.0mm / 15.1mm
        Small Aluminum Die   Medium Aluminum Die Large Aluminum Die Nylon Die Nylon Die
        Outside Diameter / Thickness Step Diameter / Thickness Outside Diameter / Thickness Outside Diameter / Thickness Outside Diameter / Thickness
59.745 116300, 116301, 116333, 116334, 116400, 116900 25.2mm / 10.8mm 7.3mm / 10.8mm 32.7mm / 11.0mm 31.5mm / 4.0mm 38.0mm / 15.0mm 44.0mm / 15.0mm 38.4mm / 12.0mm 31.0mm / 2.5mm
59.748 116263, 116264 25.2mm / 10.8mm 7.3mm / 10.8mm 29.5mm / 11.0mm 28.5mm / 4.0mm 35.0mm / 15.0mm 40.0mm / 15.0mm 33.0mm / 13.7mm 29.5mm / 1.5mm
59.746 116000, 116135, 116138, 116234, 116244, 116285, 116505, 116655 25.2mm / 10.8mm 7.3mm / 10.8mm 30.5mm / 11.0mm 29.2mm / 4.0mm 36.0mm / 15.0mm 40.0mm / 15.0mm 33.5mm / 14.0mm 29.5mm / 1.0mm
    Small Nylon Die Medium Nylon Die Stepped Nylon Die Outside Stepped Nylon Die Step Diameter Large Nylon Die Metal die
59.749 TC6660 31.0mm / 15.0mm 31.5mm / 15.0mm 38.5mm / 13.5mm 34.0mm / 1.5mm 44.7mm / 15.0mm 41.0mm / 15.0mm
