Stainless Steel Case Back Screw Refills Package Of 10
$5.95
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 49 and get 5% off
- Buy 50 - 99 and get 10% off
- Buy 100 or above and get 15% off

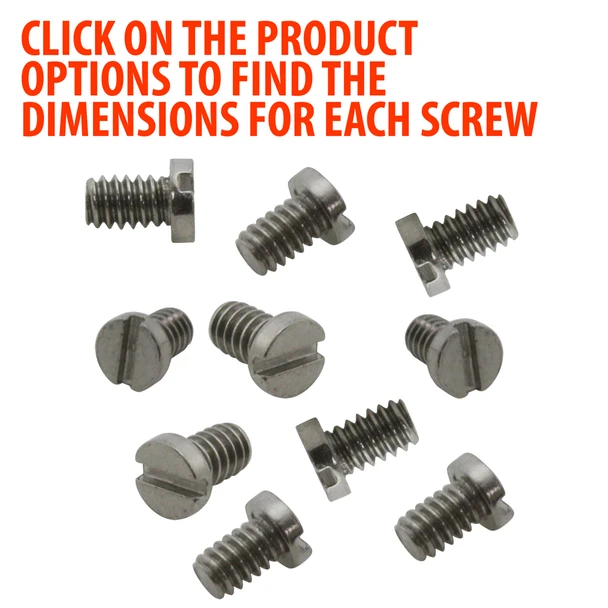

These are the stainless steel case back screw refills for the Stainless Steel Case Back Screw Assortment (SKU #81.326) and are used to keep the back of the watch closed. These screws can also be used as a replacement for band pins with a threaded head.
- Packages of 10 pieces
- See chart below to view sizes
*Sizes are approximate as measurements may vary slightly by gauge.
| Part # | Thread Diameter | Head Diameter | Thread Length | Overall Length | Head Thickness |
|---|---|---|---|---|---|
| 81.3201 | 1.0mm | 1.2mm | 1.5mm | 2.0mm | 0.5mm |
| 81.3202 | 1.0mm | 1.4mm | 1.7mm | 2.4mm | 0.5mm |
| 81.3203 | 1.0mm | 1.6mm | 2.0mm | 2.5mm | 0.5mm |
| 81.3204 | 1.0mm | 1.6mm | 2.2mm | 2.8mm | 0.5mm |
| 81.3205 | 1.0mm | 1.8mm | 2.5mm | 3.0mm | 0.5mm |
| 81.3206 | 1.0mm | 1.8mm | 2.7mm | 3.2mm | 0.5mm |
| 81.3207 | 1.2mm | 1.5mm | 1.6mm | 2.2mm | 0.5mm |
| 81.3208 | 1.2mm | 1.5mm | 2.0mm | 2.5mm | 0.5mm |
| 81.3209 | 1.2mm | 1.8mm | 1.5mm | 2.0mm | 0.5mm |
| 81.3210 | 1.2mm | 1.8mm | 1.8mm | 2.2mm | 0.5mm |
| 81.3211 | 1.2mm | 2.0mm | 2.2mm | 2.7mm | 0.5mm |
| 81.3212 | 1.2mm | 2.0mm | 2.5mm | 3.0mm | 0.5mm |
| 81.3213 | 1.4mm | 1.8mm | 1.5mm | 2.0mm | 0.5mm |
| 81.3214 | 1.4mm | 1.8mm | 1.8mm | 2.4mm | 0.5mm |
| 81.3215 | 1.4mm | 2.0mm | 2.0mm | 2.5mm | 0.5mm |
| 81.3216 | 1.4mm | 2.0mm | 2.4mm | 3.0mm | 0.5mm |
| 81.3217 | 1.4mm | 2.5mm | 2.6mm | 3.0mm | 0.5mm |
| 81.3218 | 1.4mm | 2.5mm | 3.0mm | 3.5mm | 0.5mm |
